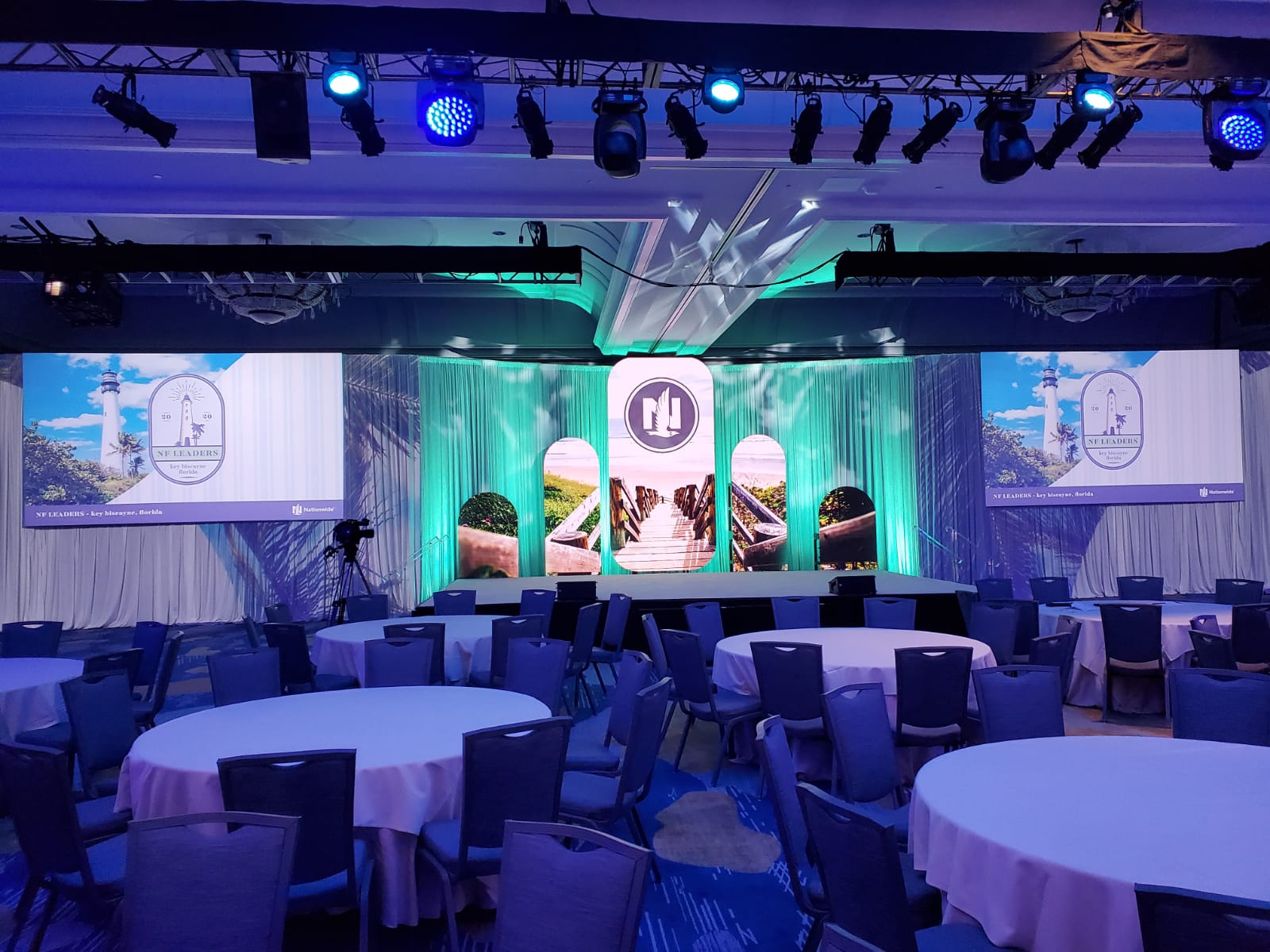

The production designer sends a napkin sketch of the stage concept. Somewhere between that creative vision and the trucks arriving at load-in, someone must translate artistic intention into millimeter-precise technical drawings that riggers, carpenters, and electricians can execute without ambiguity. That translation happens in Vectorworks Spotlight—the software that has become the common language connecting creative vision with physical construction. Master it, and you become the person who makes impossible designs buildable. Ignore it, and watch your designs collide with reality.
Understanding the Vectorworks Ecosystem
Vectorworks Spotlight emerged from the convergence of CAD drafting traditions and entertainment industry workflow requirements. While generic CAD platforms like AutoCAD can produce technical drawings, they lack the entertainment-specific tools that make Spotlight essential: integrated lighting fixture libraries, automated plot generation, data exchange with lighting consoles, and visualization capabilities that let designers see their creations before physical construction begins.
The software’s class and layer organization system initially confuses users accustomed to simpler drawing programs. Classes control object visibility and appearance across an entire document—all lighting fixtures might share a “Lighting-Instruments” class regardless of their layer location. Layers organize objects spatially, typically corresponding to physical elevations or drawing sheet purposes. Mastering this organizational structure determines whether large projects remain manageable or collapse into chaos.
Building Accurate Venue Models
Venue documentation rarely provides the precision that production design requires. Architectural drawings from the 1960s may show nominal dimensions that actual construction didn’t match. Venue technical packs include specifications that marketing optimism rather than measurement produced. The only reliable approach involves site surveys using laser distance measurers like the Leica DISTO series, capturing actual dimensions that may differ significantly from provided documentation.
Vectorworks integrates point cloud data from 3D scanning services, allowing venue models built from actual laser-scanned geometry rather than assumed dimensions. This capability, increasingly affordable as scanning services proliferate, produces venue models accurate to millimeters—precision that matters when calculating rigging point loads, sight lines, or clearances for moving scenery. The Matterport scans that many venues now provide can import directly into Vectorworks projects.
Lighting Instrument Workflows
The Spotlight instrument tools automate lighting documentation that manual drafting made unbearably tedious. Placing a symbol representing a Robe ESPRITE automatically creates database records tracking channel, address, color, and accessory information. The paperwork commands generate schedules, channel hookups, and instrument counts that update automatically when design changes occur—eliminating the documentation version conflicts that plagued pre-digital productions.
Console data exchange through GDTF (General Device Type Format) and MVR (My Virtual Rig) protocols represents Vectorworks‘ most significant recent evolution. Lighting designs can export to grandMA3, ETC Eos, or other console platforms, creating patch and fixture information directly from drawing data. This workflow eliminates the transcription errors that occurred when paperwork was manually entered into console programming—errors that caused countless fixture addressing problems during load-ins.
Rigging and Structural Documentation
Braceworks, the structural analysis plugin for Vectorworks, transforms static drawings into engineering tools that calculate loads, deflections, and safety factors. Riggers can verify that proposed designs fall within equipment capacity before committing to positions that might prove impossible. This capability has made Vectorworks the required platform for production companies whose work requires engineering sign-off—the software produces the documentation that engineers need for liability protection.
Truss and rigging symbol libraries from manufacturers like Prolyte, Tyler, and Total Structures include accurate weights and dimensions that Braceworks uses for calculations. Generic truss symbols created without accurate data produce meaningless structural analysis. The discipline of using manufacturer-provided symbols rather than creating quick approximations determines whether Braceworks calculations protect productions or provide false confidence.
Visualization and Rendering
The integrated Renderworks engine produces renderings that help clients visualize design concepts and help crews understand construction requirements. Vision, the real-time visualization add-on, extends these capabilities into interactive pre-visualization where lighting looks can be programmed before physical equipment arrives. This workflow has compressed design timelines by moving programming work earlier in production schedules.
ConnectCAD integration addresses video system documentation that Spotlight alone couldn’t handle. Signal flow diagrams, equipment rack layouts, and cable schedules complement the physical placement drawings that Spotlight produces. Productions with complex video distribution systems find this integration essential for maintaining documentation coherence across disciplines.
Collaboration and File Management
The learning curve for Vectorworks Spotlight frustrates users who expect software to work intuitively. The investment in formal training—Vectorworks University courses, industry training programs, or mentorship from experienced users—pays dividends throughout careers. Productions that tolerate undertrained Vectorworks users produce documentation that causes problems at every subsequent production phase. The software’s capabilities exist only for users who invest in learning them.
